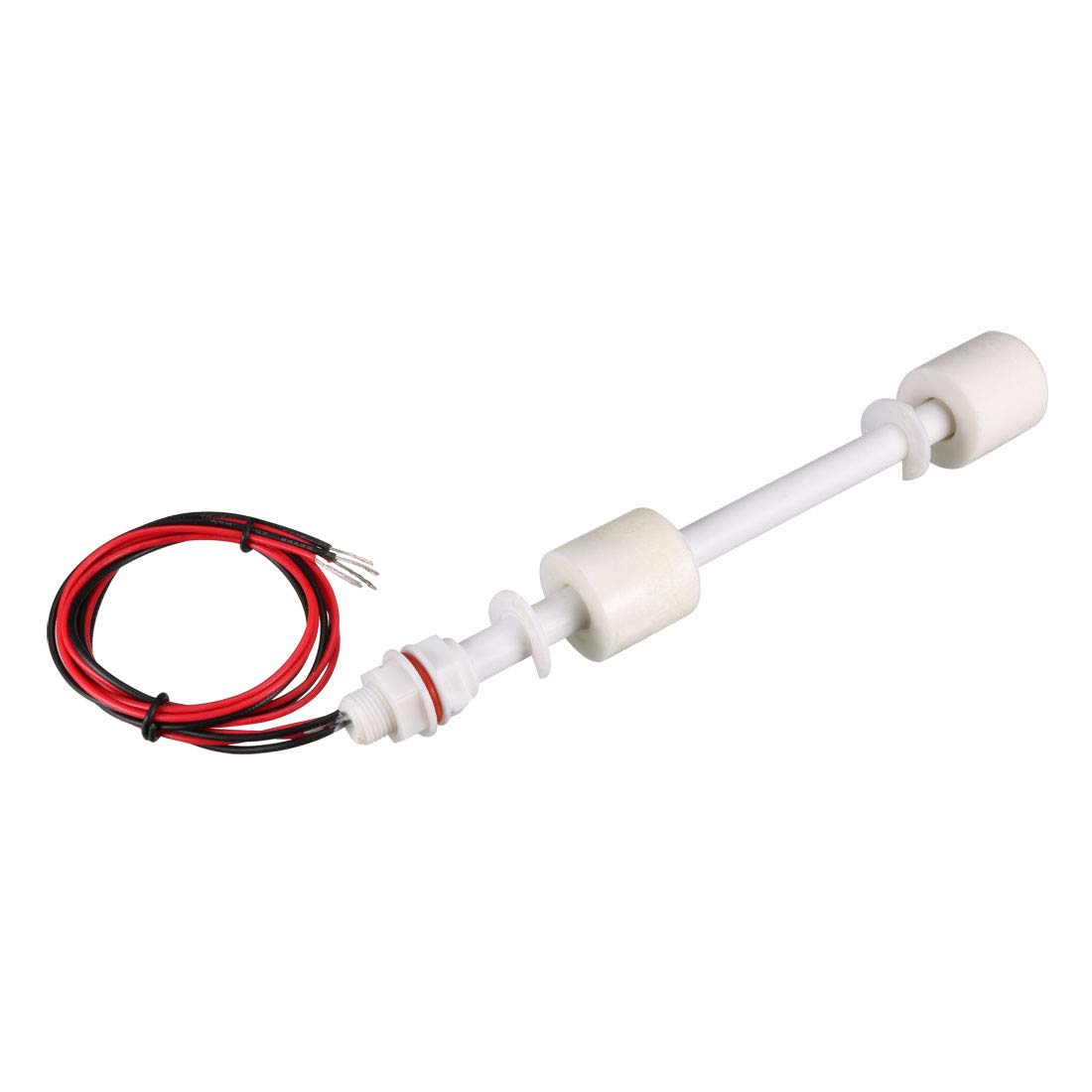

uxcell Magnetic Float Switch Water Float Ball for Water Pump Tank Liquid Water Level Sensor 165mm Length
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Float Ball Number: 2; Max Contact: Rating 10W; Max Switching Voltage: 110VAC; Max Switching Current: 0.5A
•Float Ball Size(Approx): 22x21mm/0.87x0.83inch(Dia*H);Thread Diameter: 10mm/0.39inch; Total Length: 165mm/6.5inch
•The versatility of this vertically mounted sensor means that it can be installed either at the top or base of your tank,depending on whether you wish to detect the water is rise or fall
•Note: Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
•Widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
