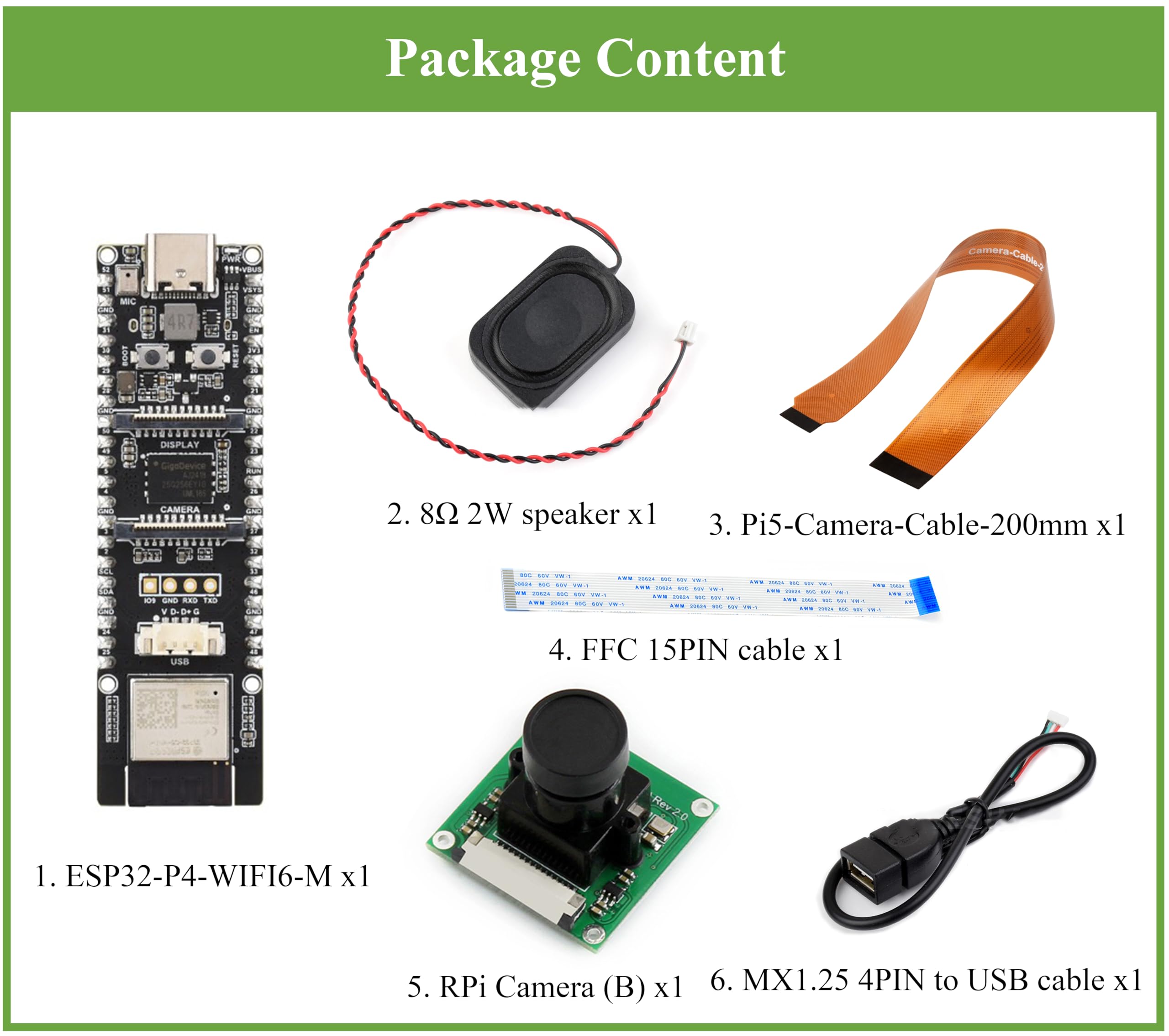

AI ESP32-P4-WIFI6 Development Board with Pre-Soldered Header, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6/Bluetooth 5/BLE, Supports AI Speech Interaction, Bundle with Speaker, Camera -6 Items
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

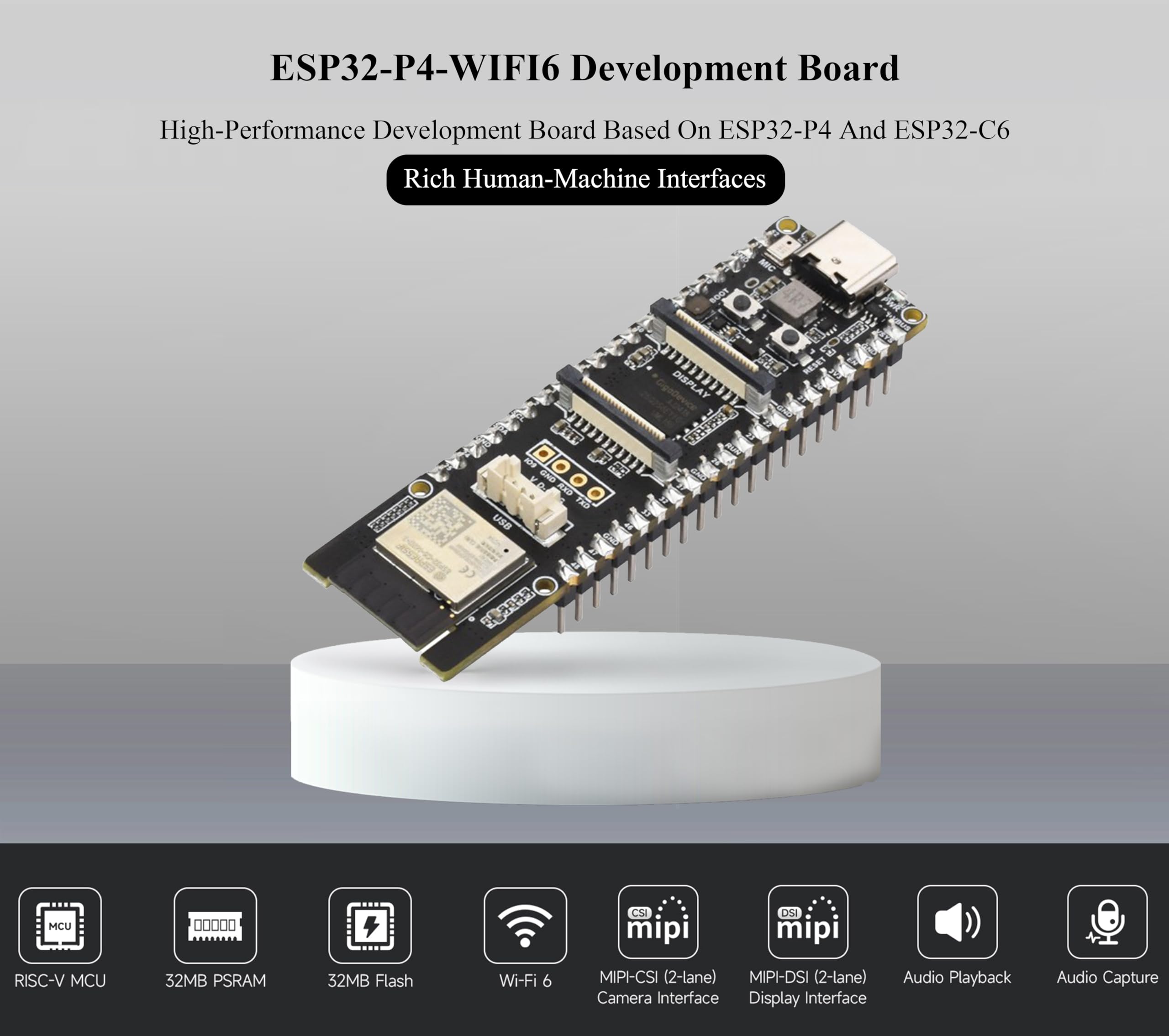

•ESP32-P4-WIFI6 is a multimedia development board, based on ESP32-P4 with integrated ESP32-C6, and supports Wi-Fi 6 and BLE 5 wireless connections. It provides a rich set of human-machine interaction interfaces, additionally, it supports USB OTG 2.0 HS, and has a built-in 40PIN GPIO expansion interface on board that is compatible with Raspberry Pi HAT expansion boards, enabling a wider range of application adaptability.
•Supports AI Speech Interaction: Allows access to online large model platforms such as DeepSeek, ChatGPT, Doubao, etc. The ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security. The ESP32-P4-WIFI6 is specially designed for high-performance and high-security applications, meeting the needs of embedded systems in human-machine interaction, edge computing, and IO expansion.
•Processor: High-performance MCU equipped with RISC-V 32-bit dual-core and single-core processors. Equipped with RISC-V 32-bit single-core processor (LP system). Equipped with ESP32-C6 WIFI/BT co-processor, expand WIFI 6/Bluetooth 5(BLE) and other functions through SDIO.
•Memory: 128 KB of high-performance (HP) system read-only memory (ROM). 16 KB of low-power (LP) system read-only memory (ROM). 768 KB of high-performance (HP) L2 memory (L2MEM). 32 KB of low-power (LP) SRAM. 8 KB of system tightly coupled memory (TCM). 32 MB PSRAM is stacked in the package, and the QSPI port is connected to 32MB Nor Flash.
•Peripheral Interfaces: 2 x 20 header pins onboard, 27 remaining programmable GPIOs, supporting a variety of peripheral devices. Onboard USB 2.0 OTG port, SDIO3.0 TF card slot, Type-C UART flashing port, convenient for different scenarios. Onboard speaker port, microphone, Codec chip and power amplifier chip can be used to achieve the ideal audio function requirements.
•Onboard MIPI-CSI high-definition camera port, support full HD 1080P picture acquisition and encoding, integrated image signal processor (ISP) and H264 video encoder, support H.264 & JPEG video encoding (1080P @30fps), easy to apply to computer vision, machine vision and other fields.
•Onboard MIPI-DSI high-definition screen display port, integrated pixel processing accelerator (PPA), 2D graphics acceleration controller (2D DMA), supporting JPEG image decoding (1080P @30fps), providing strong support for high-definition screen display and smooth HMI experience, convenient for application to smart home central control screen, industrial central control screen, vending machine and other scenarios.
•Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/he67d4
